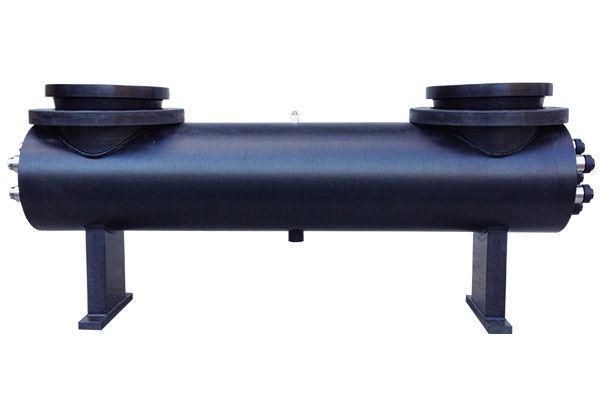

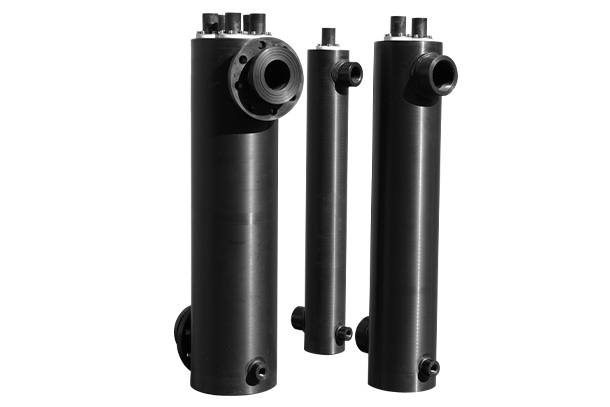

HDPE Series

The HDPE series is the best solution for corrosive liquids and seawater. The manifold is constructed from HDPE (high-density polyethylene) which is resistant to UVC radiation. Longevity against corrosion and excellent disinfection are the key features of this series.

  • FLOW RATE:

    From 1 to 980 m3/h

  • LAMPS:

    Low-pressure high efficiency

    Low-pressure amalgam

  • LAMP LIFE:

    9.000 - 16.000

  • UV CHAMBER MATERIAL:

    High-density polyethylene (HDPE)

  • HYDRAULIC CONNECTIONS:

    from 1 1/2'' to DN 450

  • MAX PRESSURE:

    6 bar

  • SYSTEM CONFIGURATION:

    vertical / horizontal - Z / U

  • WATER QUALITY:

    UVT 70-97% 1 cm

It is the ideal series for treating seawater. The HDPE series can handle flow rates from 1 to 1000 m3/h and uses low-pressure lamps. The control panels used are equipped with both LCD and Touch screen displays.

ELECTRICAL PANEL

  • MODEL:

    LCD - RACK LCD - DC

  • DISPLAY:

    LCD - TOUCH SCREEN

  • IP PROTECTION:

    54 (more on request)

  • LAMP POWER REGULATION:

    50 - 100% (from110)

  • PANEL MATERIAL:

    Plastic - painted steel (more on request)

  • POWER SUPPLY:

    230V - 50-60Hz / 400V 50-60Hz (more on request)

Where you can use it

Are you interested in our products?

Contact us for further information
Certifications
